    SEWO B4A-180 High Speed Gate
    Number of views:
    1000

    SEWO B4A-180 High Speed Gate

    Retail price
    0.0
    元
    Market price
    0.0
    元
    Number of views:
    1000
    Product serial number
    SEWO-B4A-180
    Category
    High Speed Gate
    Quantity
    -
    +
    Stock:
    0
    1
    Product description
    Parameters
    Technical Parameters
    Product advantages

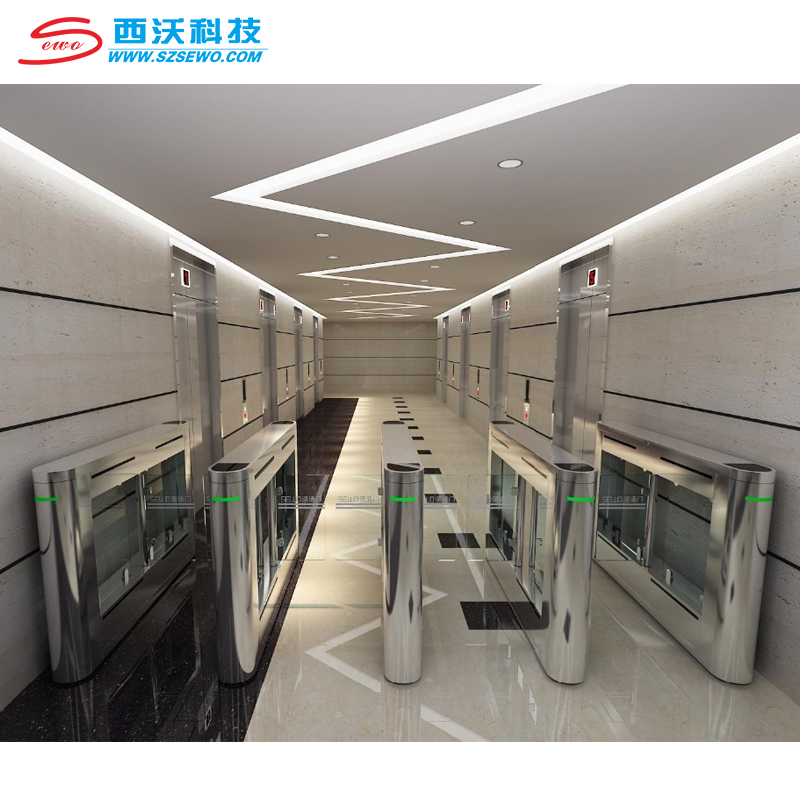

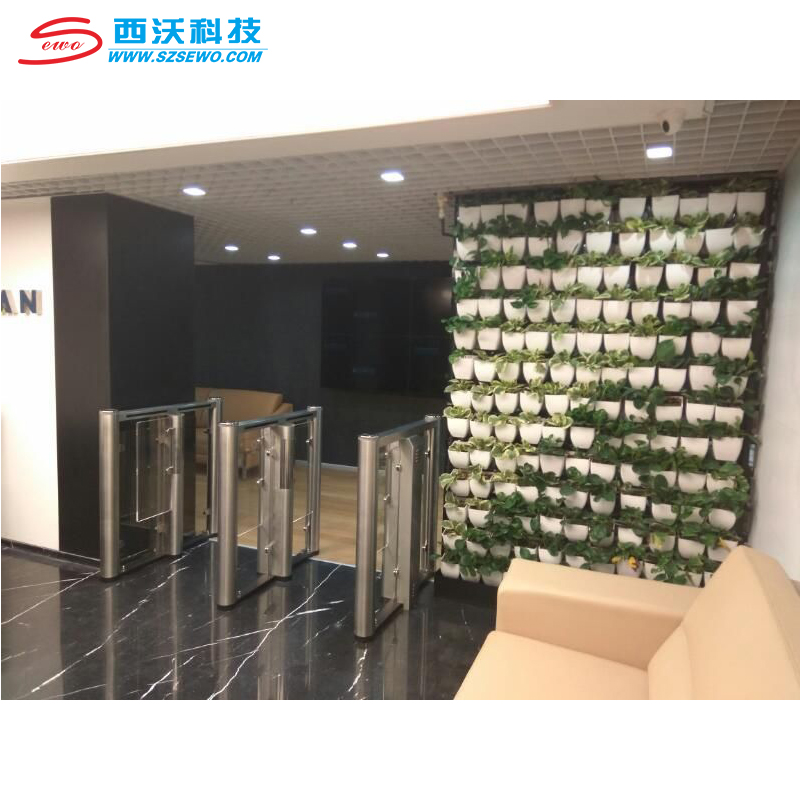

    Project cases

    The operation of the entire system uses a mechanical positioning device. The operation process is controlled by sensors without mechanical collision;

    CNC machining technology, fine surface treatment, nickel-plated surface to prevent rust;

    Standard external electrical interface with photoelectric safety isolation.

    Movement structure: 24V DC brushless motor + encoder technology + clutch brake

    Passage: AB (swipe card to A, free to B), BA (swipe card to B, free to A),

    AA (two-way brush cartoon line), BB (two-way free passage);

    Red/Green Light : direction indication

    Drive mode: DC24V brushless motor

    Safe mode: free pass after power off

    We could not find any corresponding parameters, please add them to the properties table

    Product model: SEWO-B4A-180

    Product size: length: 1400mm; width: 180mm; height: 1000mm;

    Material: SUS304/1.2mm, Hair line finishing surface

    Flap wing material: acrylic plate or tempered glass

    Channel width: 600-900mm

    Voltage: AC110/AC220 ±10% V 50 ±10% Hz

    Working voltage: DC24V

    Frequency: single-phase 50Hz to 60Hz

    Ø Drive motor: DC brushless motor drive

    Ø Communication interface: TCP/RS485/RS232 interface distance ≤1200 meters

    Ø Working environment: indoor and outdoor (shade)

    Operating temperature: -15 to 70°C

    Storage temperature: -40 to 80℃

    Relative humidity: 5% to 95% in non-solidified state

    Equipment noise: switch door ≤50dB

    Protection level: IP43

    Passing speed: 0.4s one way, 45 persons/minute in normally closed mode

    Lightning protection level: Level 3 lightning protection

    Movement structure: Adopting SEWO patent technology non-destructive mechanical structure fully automatic movement

    Alarm function: alarm when illegal intrusion, trailing, passing overtime, passing failure.

    Ø Device adjustment function: Through the LED menu and buttons on the main control board, running state and multiple working modes can be set.

    Ø Anti-pinch function: Infrared signal feedback, thus effectively protecting the safety of pedestrians.

    Ø Anti-trailing function: two-way anti-trailing function.

    Ø Anti-shock protection function: When an external force strikes the swing door abnormally, or someone forcibly breaks in, the swing door can hit a 3 degree buffer angle, which can effectively prevent pedestrians from passing by while reducing damage to the swing door.

    Ø Automatic reset function: ①Forcibly push 3 degrees to automatically lock and delay automatic reset; ②After normal opened and the person does not pass within the specified time, the system will automatically cancel the user's permission for this pass (passing time can be set).

    Ø Automatic unlocking function: in case of emergency, the swing door can be pushed freely after power failure, which meets the fire protection requirements.

    Ø Fire alarm linkage function: After receiving the fire alarm signal, the equipment will open unconditionally first

    Ø Anti-hand-shake function: Infrared monitoring accurately distinguishes the passing of personnel and the walking hand-shake to prevent misjudgment of trailing or closing the gate

    Ø Submerged return gate function: (After swiping the card, enter the anti-pinch area and then exit the channel, the gate will be closed)

    Ø Product control: ①Access control and attendance ②Fingerprint recognition ③Tour Attractions ticketing ④Self-service passing ⑤Visitors pass ⑥Remote control and management can be achieved directly through the management computer

    Technical index: (special expandable part)

    Ø Secondary opening function: the use of anti-submarine areas.

    Ø Counting function: record the number of people entering and leaving a single channel.

    Previous
    SEWO-B1-280 High Speed Gate
    Next
    None

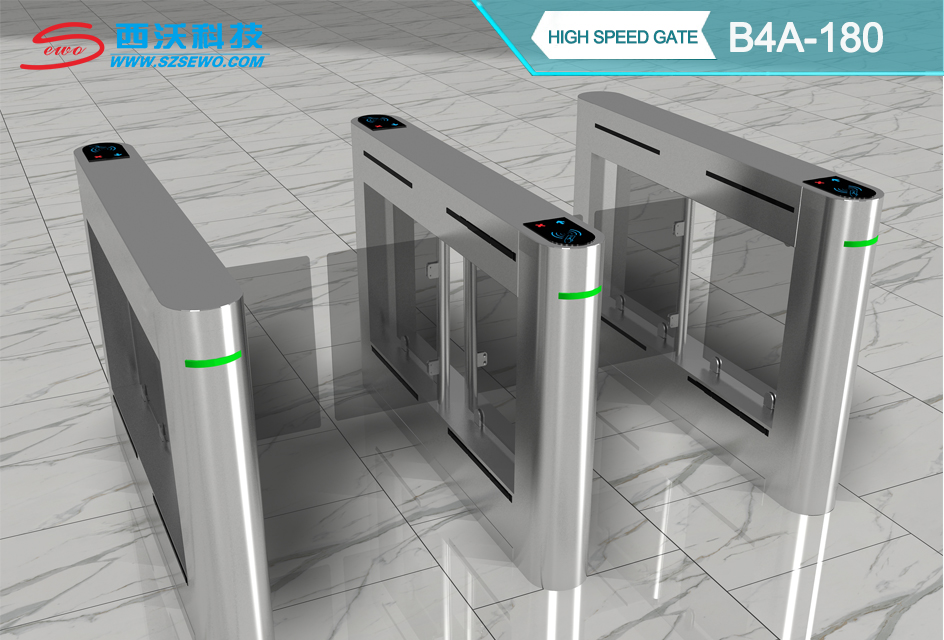

    SEWO-B4A-180-001

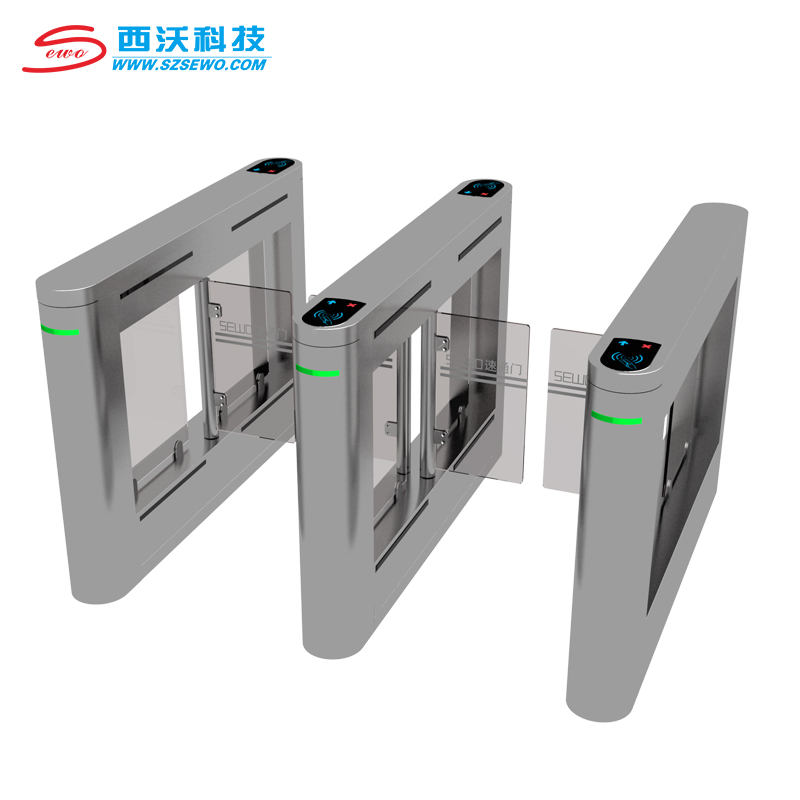

    B4A-180 (2)

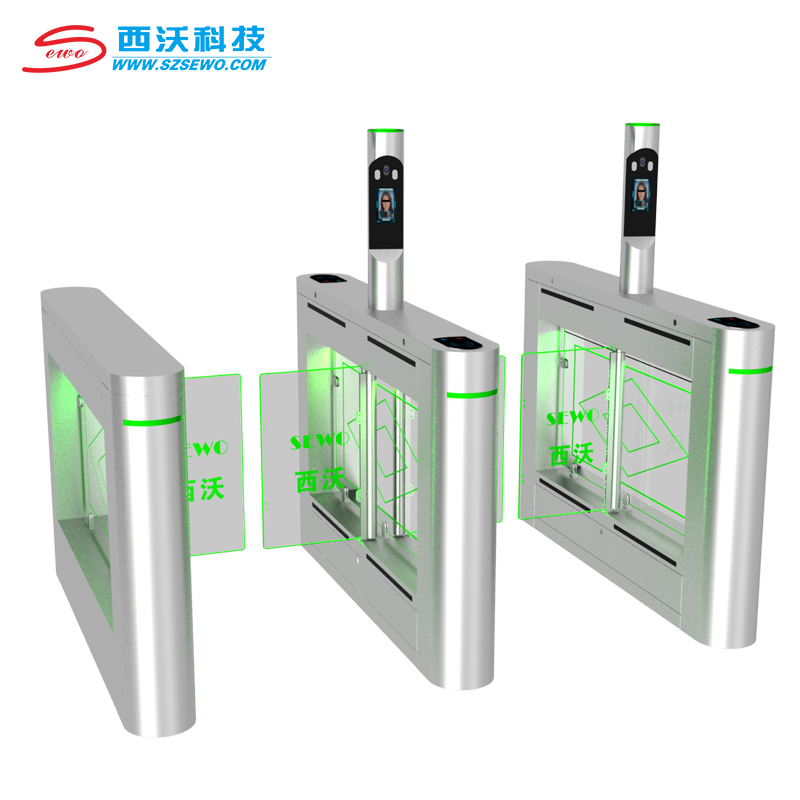

    B4A-180 (8)

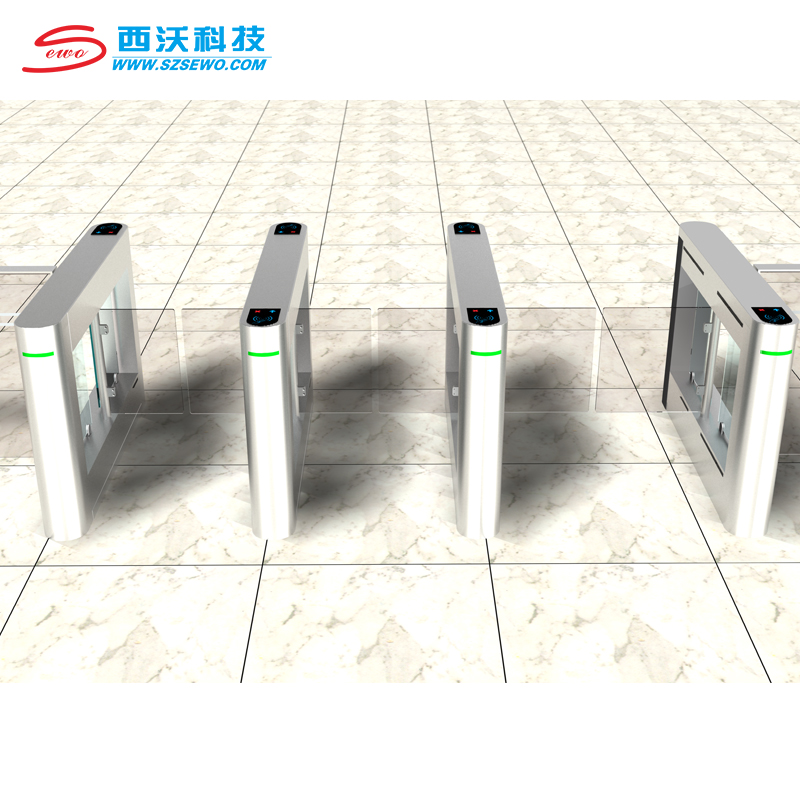

    B4A-180 (4)
